I created this Tutorial and modified 2 nodes from Nuke because I wanted to explore more the matrix to apply a Transform 2D.

You can download the Transform node with the Matrix here:

Download Transform from Nukepedia

__Read more about TransformMatrix__

You can download the Corner Pin node with the Matrix here:

Download CornerPin from Nukepedia

__Read more about CornerPin_Matrix__

### Useful Links

- http://community.foundry.com/discuss/topic/101782
- http://www.nukepedia.com/written-tutorials/using-the-nukemath-python-module-to-do-vector-and-matrix-operations/all
- https://www.geeksforgeeks.org/python-program-to-find-transpose-of-a-matrix/
- https://gist.github.com/julik/1164618
- https://en.wikipedia.org/wiki/Transformation_matrix
- https://www.tutorialspoint.com/computer_graphics/2d_transformation
- https://medium.com/hipster-color-science/computing-2d-affine-transformations-using-only-matrix-multiplication-2ccb31b52181
- https://www.slideshare.net/dinakan1/2-d-transformations
- http://web.iitd.ac.in/~hegde/cad/lecture/L6_3dtrans.pdf
- https://www.cs.brandeis.edu/~cs155/Lecture_06.pdf
- http://www.it.hiof.no/~borres/j3d/math/twod/p-twod.html
- https://compositetransformations.pdf
- https://en.wikipedia.org/wiki/Homogeneous_coordinates
- https://en.wikipedia.org/wiki/Affine_transformation
- https://it.mathworks.com/discovery/affine-transformation.html
- https://www.slideshare.net/akbrightfuture/2-d-transformations-by-amit-kumar-maimt?next_slideshow=1
- https://www.slideshare.net/darokoblog/2d-transformations-in-computer-graphicscomputer-graphics-tutorials

### Overview

I remember the first operation I wanted to do with Photoshop: scaling a picture!
Transformation means changing some graphics into something else by applying rules. We can have various types of transformations such as translation, scaling up or down, rotation, shearing, etc. When a transformation takes place on a 2D plane, it is called **2D transformation**.
Transformations play an important role in image manipulation to reposition the graphics on the screen and change their size or orientation

You can use different kind of matrix: 3x3, 5x5, 7x7, and so on. In Nuke we will consider a matrix 4x4, but in this tutorial only 3x3 matrices, they are the most used and they are enough for all effects you want.

- Vocabulary

- Scaling: A dilation/scaling is a transformation that enlarges or reduces the size of a figure.

- Translation: A translation is an example of a transformation that moves each point of a shape the same distance and in the same direction. Translations are also known as slides.

- Rotation: A rotation is a transformation that rotates (turns) an image a certain amount about a certain point.

- Reflection: A reflection is an example of a transformation that flips each point of a shape over the same line.

- Shear:: A transformation that slants the shape of an object is called the shear transformation. There are two shear transformations X-Shear and Y-Shear. One shifts X coordinates values and other shifts Y coordinate values. However; in both the cases only one coordinate changes its coordinates and other preserves its values. Shearing is also termed as Skewing.

- Stretching:: A stretch in the xy-plane is a linear transformation which enlarges all distances in a particular direction by a constant factor but does not affect distances in the perpendicular direction.

- Squeezing:: If the two stretches above are combined with reciprocal values. A square with sides parallel to the axes is transformed to a rectangle that has the same area as the square.

### Homogenous Coordinates and composite transformations

A **composite transformation** is when two or more transformations are combined to form a new image from
the original image. Basically the operation is a multiplication: *matrix * matrix*.

To perform a sequence of transformation such as translation followed by rotation and scaling, we need to follow a sequential process:

*- Translate the coordinates
- Rotate the translated coordinates
- Scale the rotated coordinates to complete the composite transformation.*

To shorten this process, we have to use 3×3 transformation matrix instead of 2×2 transformation matrix. To convert a 2×2 matrix to 3×3 matrix, we have to add an extra dummy coordinate W. In this way, we can represent the point by 3 numbers instead of 2 numbers, which is called

**Homogenous Coordinate system**. To represent affine transformations with matrices, we can use homogeneous coordinates. This means representing a 2-vector (x, y) as a 3-vector (x, y, 1), and similarly for higher dimensions. Using this system, translation can be expressed with matrix multiplication.

It's important to understand that the

*matrix multiplication is NOT a commutative operation*. In other words, the order of the operations is important. In the picture below, let's try to apply the translation and the rotation on the left image and the rotation/translation on the right one.

If a transformation of the plane T1 is followed by a second plane transformation T2, then the result itself may be represented by a single transformation T which is the composition of T1 and T2 taken in that order. This is written as T = T1∙T2.

Composite transformation can be achieved by concatenation of transformation matrices to obtain a combined transformation matrix.

A combined matrix −

**[T][X] = [X] [T1] [T2] [T3] [T4] …. [Tn]**

Where [Ti] is any combination of: Translation, Scaling, Shearing, Rotation, Reflection.

The change in the order of transformation would lead to different results, as in general matrix multiplication is not cumulative, that is *[A] . [B] ≠ [B] . [A]* and the order of multiplication. The basic purpose of composing transformations is to gain efficiency by applying a single composed transformation to a point, rather than applying a series of transformation, one after another.

- 1st example: ROTATE

For example, to rotate an object about an arbitrary point (Xp, Yp), we have to carry out three steps:

- TRANSLATE (pivot point is moved to origin)

- ROTATE (about the origin)

- TRANSLATE (pivot point is returned to origin position)

- 2nd example: SCALE about FIXED POINT

For example, to scale an object about a general fixed-point, we have to carry out three steps:

- TRANSLATE (fixed point is moved to origin)

- SCALE (with respect to origin)

- TRANSLATE (fixed point is returned to origin position)

- 3rd example: GENERAL SCALING DIRECTION

Scale an object about a general scaling direction, we have to carry out three steps:

- ROTATE (scaling direction align with the coordinate axes)

- SCALE (with respect to origin)

- ROTATE (scaling direction is returned to origin position)

### Affine Transformation

Affine transformation is a linear mapping method that preserves points, straight lines, and planes. Sets of parallel lines remain parallel after an affine transformation.

An affine transformation is an important class of linear 2-D geometric transformations which maps variables into new variables by applying a linear combination of translation, rotation, scaling and/or shearing operations.

### In Nuke

In Nuke, Transform node and CornerPin have a matrix knob inside. You can use them to convert the transformation in a matrix 4x4.

__Click here to download these tools__

When you will find this Textfield in the article below, you can copy-paste the values directly in the Matrix 4x4 knob in the CornerPin node in Nuke.

### Matrices

If you are in love with Matrices :) I've also written this tutorial about the Convolution Matrix

Read More

Click on the link below to go directly there:

- 01. Identity Matrix / No Transformation
- 02. Reflection / Mirroring
- 03. Translation
- 04. Rotation about the Origin
- 05. Rotation about a Point
- 06. Scaling about the origin
- 07. Scaling and Rotation about the origin
- 08. Stretching
- 09. Squeezing
- 10. Shearing

- Original Image

- 01. Identity Matrix / No Transformation

The **identity matrix** transforms a point to itself: P1=P2=I·P1

This can be interpreted as translation with (0,0), rotation with 0 degrees (since cos (0)=1 and sin (0)=0), scaling with (1,1)

*https://en.wikipedia.org/wiki/Identity_matrix*

1 | 0 | 0 | 0 |

0 | 1 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

- 02. Reflection / Mirroring

A **reflection** is an example of a transformation that flips each point of a shape over the same line.

*https://en.wikipedia.org/wiki/Reflection_(mathematics)*

-1 | 0 | 0 | 0 |

0 | 1 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

1 | 0 | 0 | 0 |

0 | -1 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

-1 | 0 | 0 | 0 |

0 | -1 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

0 | 1 | 0 | 0 |

1 | 0 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

- 03. Translation

A **translation** moves an object to a different position on the screen. You can translate a point in 2D by adding translation coordinate (tx, ty) to the original coordinate (X, Y) to get the new coordinate (X’, Y’).

In this example I applied a translation of X=100 and Y=200

*https://en.wikipedia.org/wiki/Transformation_matrix*

1 | 0 | 0 | T.x |

0 | 1 | 0 | T.y |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

- 04. Rotation about the Origin

For **rotation** by an angle θ **clockwise** about the origin the functional form is x'=x*cosθ +y*sinθ and y'=-x*sin(θ) +y*cosθ. Written in matrix form, this becomes:

cosθ | sinθ | 0 | 0 |

-sinθ | cosθ | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

In Nuke, any kind of Rotation has to be in Radians. If you want to convert a number from Degrees to Radians, apply this formula: **Radians(x)**

Similarly, for a rotation **counterclockwise** about the origin, the functional form is x'=x*cosθ - y*sinθ and y'=-x*sin(θ) + y*cosθ.

cosθ | -sinθ | 0 | 0 |

sinθ | cosθ | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

- 05. Rotation about a Point

*https://www.slideshare.net/msadiqns/two-dimensional-geometric-transformations*

For **rotation** by an angle θ **clockwise** a Point, the functional form is x'=xr + (x-xr)*cosθ - (y-yr)*sinθ and y'=yr+(x-xr)*sin(θ) + (y-yr)*cosθ. Written in matrix form, this becomes:

We can explain better this matrix with an example: let's try with a rotation of -90° (Rad=1,57), centered in T = (500, 800).

sin(90°) = 1

cos(90°) = 0

So the final matrix would be:

cosθ | sinθ | 0 | x |

-sinθ | cosθ | 0 | y |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

where *x = T.x * (1-cosθ) - T.y * sinθ = 500 * (1 - 0) - 800 * 1 = 500 - 800 = -300*

and

*y = T.y * (1-cosθ) + T.x * sinθ = 800 * (1 - 0) + 500 * 1 = 800 + 500 =*

**1300**
In the second example, for a rotation **counterclockwise** about a point T, the functional form is x'=xr + (x-xr)*cosθ + (y-yr)*sinθ and y'=yr+(x-xr)*sin(θ) - (y-yr)*cosθ. Written in matrix form, this becomes:

We can explain better this matrix with an example: let's try with a rotation of 90° (Rad=1,57), centered in T = (1300, 1000).

sin(90°) = 1

cos(90°) = 0

So the final matrix would be:

cosθ -sinθ 0 x sinθ cosθ 0 y 0 0 1 0 0 0 0 1
where *x = T.x * (1-cosθ) + T.y * sinθ = 1300 * (1 - 0) + 1000 * 1 = 1300 + 1000 = -2300*

and

*y = T.y * (1-cosθ) - T.x * sinθ = 1000 * (1 - 0) - 1300 * 1 = 800 + 500 =*

**-300**- 06. Scaling about the origin

To change the size of an object, scaling transformation is used. In the scaling process, you either expand or compress the dimensions of the object. Scaling can be achieved by multiplying the original coordinates of the object with the scaling factor to get the desired result.

Let us assume that the original coordinates are (X, Y), the scaling factors are (SX, SY), and the produced coordinates are (X’, Y’). This can be mathematically represented as shown below −

**X' = X * SX** and **Y' = Y * SY**

If we provide values less than 1 to the scaling factor S, then we can reduce the size of the object. If we provide values greater than 1, then we can increase the size of the object.

Sx | 0 | 0 | 0 |

0 | Sy | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

- 07. Scaling and Rotation about the origin

In this case we want to rotate and scale the picture about the origin 0,0

Let us assume that the original coordinates are (X, Y), the scaling factors are (SX, SY), rotating factors are (RX, RY) and the produced coordinates are (X’, Y’). This can be mathematically represented as shown below −

**X' = X * SX * RX** and **Y' = Y * SY * RX**

We want to apply a rotation of 180° and a scale of 2.

cos(180°) = -1

sin(180°) = 0

X1 | X2 | 0 | 0 |

Y1 | Y2 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

X1 = cosθ * SX = -1 * 2 = -2

X2 = sinθ * SX = 0 * 2 = 0

Y1 = -sinθ * SY = 0 * 2 = 0

Y2 = cosθ * SY = -1 * 2 = -2

- 08. Stretching

A stretch in the xy-plane is a linear transformation which enlarges all distances in a particular direction by a constant factor but does not affect distances in the perpendicular direction. We only consider stretches along the x-axis and y-axis. A stretch along the x-axis has the form x' = kx; y' = y for some positive constant k. (Note that if k is > 1, then this really is a "stretch"; if k is less than 1, it is technically a "compression", but we still call it a stretch. Also, if k=1, then the transformation is an identity, i.e. it has no effect.)

Let us assume that the original coordinates are (X, Y), the scaling factors are (SX, SY), rotating factors are (RX, RY) and the produced coordinates are (X’, Y’). This can be mathematically represented as shown below −

The matrix associated with a stretch by a factor k along the **x-axis** is given by:

k | 0 | 0 | 0 |

0 | 1 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

Similarly, a stretch by a factor k along the **y-axis** has the form x' = x; y' = ky, so the matrix associated with this transformation is:

1 | 0 | 0 | 0 |

0 | k | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

- 09. Squeezing

If the two stretches above are combined with reciprocal values, then the transformation matrix represents a squeeze mapping.

A square with sides parallel to the axes is transformed to a rectangle that has the same area as the square. The reciprocal stretch and compression leave the area invariant.

k | 0 | 0 | 0 |

0 | 1/k | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

- 10. Shearing

A transformation that slants the shape of an object is called the shear transformation. There are two shear transformations X-Shear and Y-Shear. One shifts X coordinates values and other shifts Y coordinate values. However; in both the cases only one coordinate changes its coordinates and other preserves its values. Shearing is also termed as Skewing.

The **X-Shear** preserves the Y coordinate and changes are made to X coordinates, which causes the vertical lines to tilt right or left as shown in below figure.

A shear parallel to the x axis has x' = x + sh and y' = y. Written in matrix form, this becomes:

1 | sh | 0 | 0 |

0 | 1 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

The **Y-Shear** preserves the X coordinates and changes the Y coordinates which causes the horizontal lines to transform into lines which slopes up or down as shown in the following figure.

A shear parallel to the y axis has x' = x and y' = y + sh, which has matrix form

1 | 0 | 0 | 0 |

sh | 1 | 0 | 0 |

0 | 0 | 1 | 0 |

0 | 0 | 0 | 1 |

### Transform node with Matrix

Download Transform Matrix

I've modified the Transform node of Nuke, adding a Matrix to visualize the same transformation with a Matrix4x4.

It has the basic knobs of a classic Transform node, but with a custom area for the Matrix.

As you can see, you can't paste a Matrix, but just Copy it.

Also, if you wish, just select the Transformation you want to visualize: Translate, Rotate or Scale.

- Transpose

The transpose of a matrix is an operator which flips a matrix over its diagonal, that is it switches the row and column indices of the matrix by producing another matrix denoted as AT

If you try to print the knob *matrix* in Python, you will get the Transpose Matrix. This is because (I assume) there is no consistency between the output in Nuke. That's why I added the checkbox *Transpose* in the TransformMatrix.

Enabling the transpose checkbox, you will see how the matrix changes.

- How to use the Matrix

I said that you can't interact directly with the matrix in the TransformMatrix node, but at least you can copy it.

Let's start creating the TransformMatrix, modify the values and now create a CornerPin. Don't change the values

Now you can copy/paste the matrix to the **extra_matrix** knob in the CornerPin, or create an Expression.

If you check the results, you will get the same one in both of the nodes

### Corner Pin node with Matrix

- Special Thanks to Julik for his tutorial: http://gist.github.com/julik/1164618

Download Corner Pin 2D Matrix

As before, I modified also the CornerPin2D node. In this case we can see how to use this node.

In this example, connect the CornerPin_Matrix to the image and modify the pins.

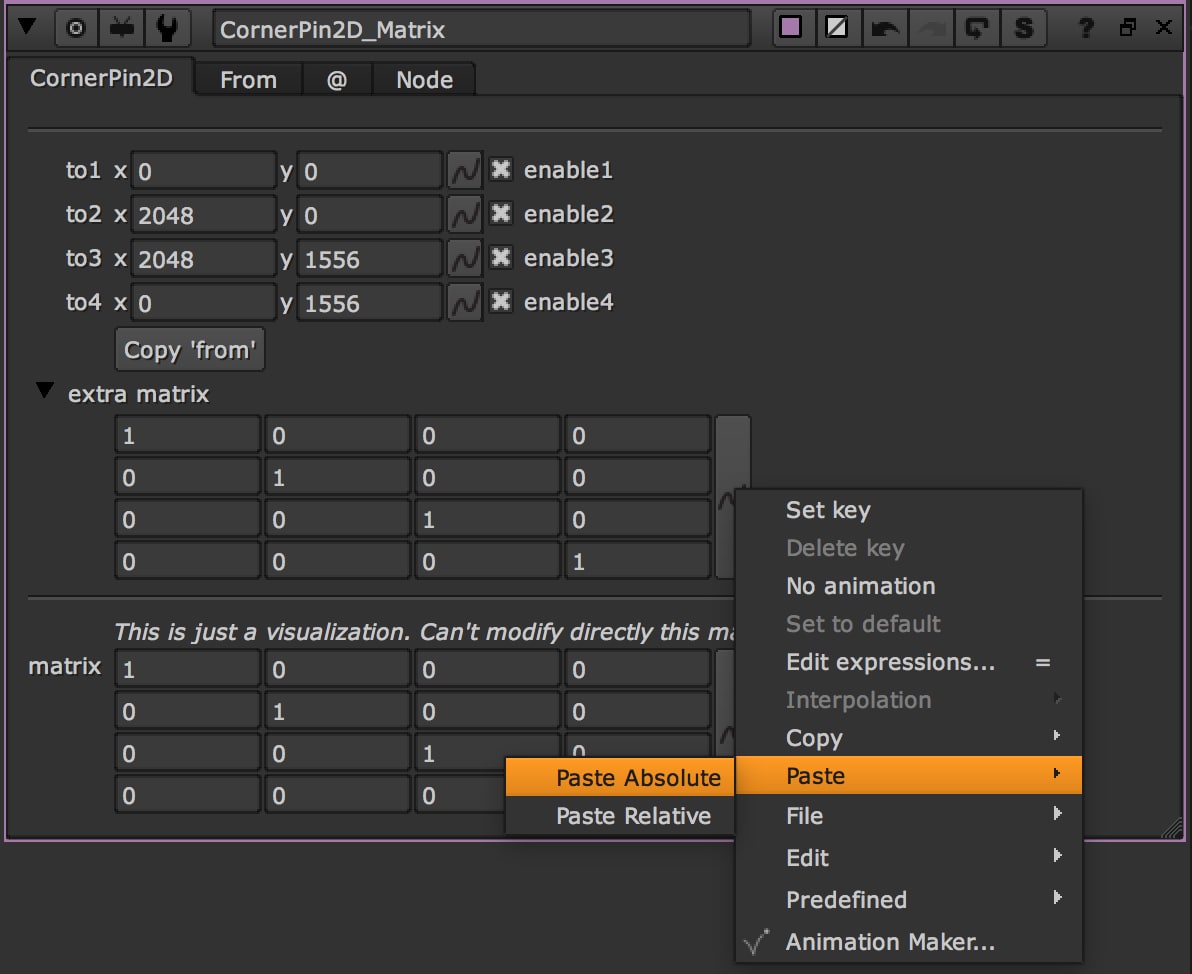

There is a checkbox useful to invert the Matrix. In this case we can copy the matrix in another CornerPin and the copy the inverse matrix in another CornerPin. The final result will be the original picture

In this case you can modify the picture with the Matrix and add other changes with the Pins.
